H-ONE hubs

H-ONE hubs

H-ONE hubs are excellent after market hubs of european origin.

  • they are CNC machined from a block of 6082 T6 aircraft billet aluminium. so they are much stronger than the casted OEM hubs of the most bikes
  • hbs are coloured anodized - colour options as follows: gold, silver, black, blue, red, green and orange - all colour options available for the same price!
  • they are specific made for the mentioned bikes. That means all the OEM sprockets and brake disc will fit, because the hole circles are identical. No adapters or similiar stuff necessary.
  • hubs are equipped with high quality bearings. They comes including all bearings, sealings and distance sleeves - no adapters necessary - plug 'n play!
  • at the sprocket side the rear hub is equipped with two bearings for more durability
  • rear hubs usually are rigid ones, but for a lot of bikes there are additionally cush drive hubs available (please check chart below). So there are a lot of interesting options possible! (Cush drive design is similar to the KTM cush drive)
  • made for 36 spokes (unless hubs for 65ccm and 85ccm bikes)
  • comes including brake disc bolts and sprocket bolts
  • spare parts are available without problems (bearings, distance sleeves, sealings and more)

If you are interested in, please contact us by mail or by phone. We would like to clarify all topics before in a ersonal communication for avoiding trouble or providing wrong parts. So please contact us by phone or by mail and we will advise you in the best manner.



pricing H-ONE hbs
hub prices
front hub
all 65-85ccm, CR-F 150
220€
front hub
all MX & enduro 125ccm and larger
225€
rear hub, rigid
all 65-85ccm, CR-F 150
265€
rear hub, rigid
all MX & enduro 125ccm and larger
275€
rear hub, cush drive
all MX & enduro 125ccm and larger
425€





H-ONE hubs are available for
bike model year
BETA RR 13-
GAS GAS 04-15
HONDA CR 80-85
HONDA CRF 150
HONDA CR 125-250
HONDA CRF
92-
07-
95-
all
HUSABERG, alle KTM kompatiblen 02-
HUSQVARNA, alle TE/TC
HUSQVARNA, alle KTM kompatiblen
00-12
13-
KAWASAKI KX 65
KAWASAKI KX 80-85
KAWASAKI KX 125-250
KAWASAKI KXF 250-450
00-
88-
95-
04-
KTM SX 65
KTM SX 85
KTM SX-SXF-EXC
KTM LC4 600-620-625-640-660
KTM LC4 690
KTM LC8 950/990/1050

00-
04-
93-
93-
04-

07-

SHERCO 05-
SUZUKI RM 65
SUZUKI RM 85
SUZUKI RM 125-250
SUZUKI RMZ 250-450
00-
00-
00-
04-
YAMAHA YZ 80-85
YAMAHA YZ 125-250
YAMAHA YZF 250-400-426-450
YAMAHA TT/TTR 600
90-
93-
99-
on request



cush drive hubs are available for:

 Honda CR/CRF    02-

 Yamaha YZ/YZF/WRF    99-

 Kawasaki KX/KXF    03-

 KTM SX/EXC    93-
 KTM LC4 620/625/640/660    95-
 KTM LC4 690    08-
 KTM LC8    06-

 Husaberg all models    02-

 Husqvarna TE/FE 14-

 Beta 13-

If your bike isn't listed in the chart above, please contact us. Often we are able to modify some existing hubs slightly and then they are fit to other bikes as well.

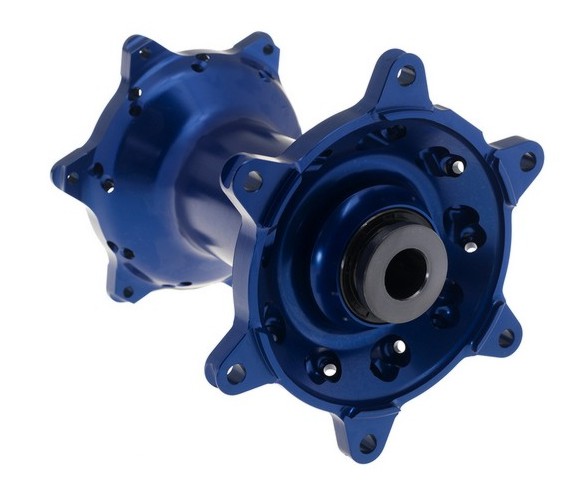

H-ONE rigid rear hub

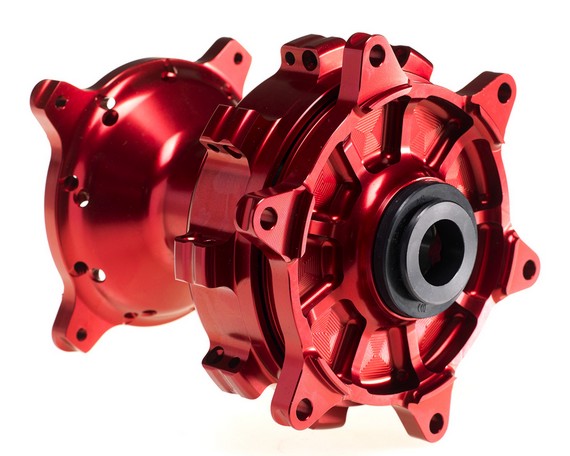

H-ONE cush drive rear hub

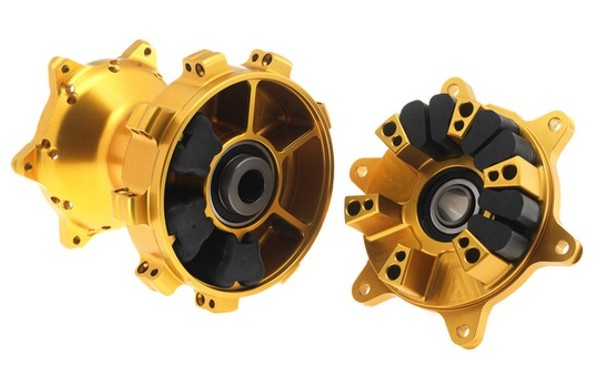

H-ONE cush drive rear hub, detailed view
